Preparing for Engine Work
Locate your owner's manual. You will most likely need it to disassemble and reassemble various parts. Also verify that your model is equipped with a timing chain and not a timing belt. These two parts perform the same task, but replacing them can be quite different. This procedure is only for replacing a timing chain.
Clean the engine with the proper degreaser thoroughly before beginning. Having your engine clean allows you to better locate any leaks or worn parts. It also makes the job less messy overall. Never clean or work on your engine while it is hot. Keep in mind that the degreaser and oils you are washing off of your engine can kill your grass and pose an environmental threat. This should be done somewhere that is properly set up to drain and filter the chemicals used.
Determine your car's firing order. This may be stamped directly on the engine (either on the cylinder head, valve covers, or intake manifold) and sometimes listed in the owner’s manual specifications. You can also use a service manual to determine firing order. This will be necessary to know because later you will need to check your number one cylinder (the one that fires first in the firing order).

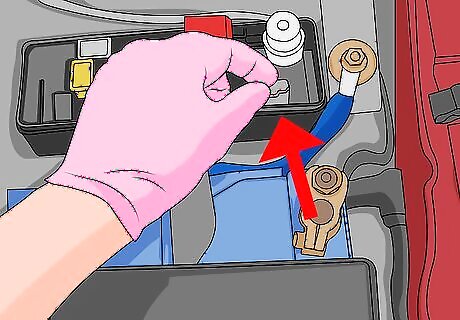

Disconnect the battery cables. You should not work on your engine with the battery plugged in. First remove the ground cable (negative terminal) and then remove the positive terminal.
Disconnecting the Radiator
Remove the radiator cap. This will allow the coolant to be drained from the system.
Open the drain cock to drain coolant. The drain cock is located near the bottom of the radiator and is a plastic screw or pull cap that you can release. Engine coolant is a mix of water and antifreeze. It is very toxic and should be stored in a plastic container with a screw-on cap. An old antifreeze bottle is ideal.
Remove the radiator hoses. Trace the radiator hoses from the radiator back to the engine. Squeeze the hose clamps with pliers and slide them back onto the hose. Wiggle the hose to break it free and move it out of the way. There is no need to remove the radiator. The hoses need to be loosened and the coolant drained for the purpose of removing the water pump in a later step.
Removing the Drive Belt Components
Locate a routing diagram. This can usually be found posted underneath the hood of your car or in your service manual for serpentine belts (S-belts). If you drive a much older car, you may have a multi-belt design (V-belt). Either way, if you cannot find a routing diagram you should take a picture or draw one before removing the belt(s).
Release the tension on the belt. For serpentine belts this is done by compressing the spring loaded tensioner. Some tensioners can be compressed with simple hand tools such as a wrench, and others may require a special tool. V-belts can be removed by adjusting the position of one of their pulleys to release tension.
Remove the belt. Once tension is released, the belt should slide off of the other pulleys easily.
Remove the heater hoses from the water pump. If your model has heater hoses attached to the water pump, loosen the hose clamps with a screwdriver and slide them back onto the hose. Wiggle the hose and pull it off of the water pump.
Remove the water pump. Take out any bolts that hold the water pump to the engine. Usually there are three to five bolts to remove. Once the bolts are removed, you should be able to pull the pump off with your hands.
Remove crankshaft pulley (harmonic balancer). Remove the bolt and washer in the center of the pulley. Put the bolt partially back in the bolt hole and use a harmonic balancer removal tool. The tool should not be a jaw type tool, but instead should apply all of the removal force to the center of the assembly. This protects the rubber ring in the harmonic balancer.
Removing the Timing Chain
Remove the timing chain cover. Unbolt the timing chain cover from the engine block. Note that the bolts are different lengths so have a system in place to remember which bolt goes where when you put the cover back on. One good method is to put them back into their proper holes in the timing chain cover and set it off to the side.
Locate marks on your crankshaft and camshaft gears. These gears are connected by the timing chain so that the position of the piston (connected to the crankshaft) correlates directly to the opening of the fuel and exhaust valves (operated by the camshaft) to keep your engine running smoothly. These gears should each be marked to help you reference their relative position.
Locate marks or “bright” links in your timing chain. These links are brighter than the other links and are used to align your engine.
Set your engine to top dead center. To get your engine to top dead center, line the bright links on the timing chain up with the marks on your camshaft and crankshaft gears. Remember that the crankshaft can be set to top dead center both on the compression and exhaust strokes of the piston. You want top dead center for the compression stroke, so you can insert
Remove the timing chain. This can be done by loosening the tension gear with a wrench or ratchet. Next slide the chain off of the gears.
Installing the New Timing Chain
Lube the gear before installing the new chain. Using a little gear oil now will help to ensure that your chain and gear perform optimally for as long as possible.
Place the new chain onto the gears while aligning with the marks. You want the bright links on the new chain to line up exactly with the marks on the gears just like the old chain did. This will allow you to locate top dead center if you ever need to.
Tighten the chain according to your car manual's specifications. Some chains are tensioned by adjusting either the crankshaft gear or the camshaft gear, while others have an automatic tensioner. This will vary by make and model of your car. The important thing is to make sure that your timing belt is as tight as it should be.
Replacing the Crankshaft Seal
Drive out the crankshaft seal with a hammer and punch. This is the rubber seal around the crankshaft and the timing cover.
Tap the new crankshaft seal into the timing cover. The seal should be seated into the correct place on the timing cover. It will seal when the cover is bolted onto the engine.
Coat the seal with oil. It is necessary to coat the seal with oil to ensure proper functioning when the seal is compressed.
Reinstall the timing chain cover. The bolts are varying lengths. Remember the system you set up to keep track of which bolts went where and be sure to use the proper bolt in the proper location.
Reassembling the Drive Belt Components and Cooling System
Bolt on the harmonic balancer. There is only the one bolt in the center that fastens the harmonic balancer into place. Check you owner’s manual or service guide for proper torque specifications.
Reinstall the water pump. Replace the bolts that fasten the water pump to the engine block.
Attach the heater hoses to the water pump. If you removed heater hoses from your water pump, you will need to slide them back onto the water pump. Once the hose is on the pump you can squeeze down the hose clamp with pliers and slide it up over where the hose and pump connect. If the clamp has a tightening screw, tighten it with a screwdriver. This will secure the hose to the pump.
Replace the radiator hoses. If the lower radiator hose is still removed or if you removed the upper hose for any reason, put them back on the radiator now. Once the hose has been slid onto the radiator, use a pair of pliers to move the clamps up the hose to the place where the hose and the radiator meet. This will fasten the hose to the radiator.
Fill the radiator with coolant according to specifications. If your coolant looks dirty or if it has been more than a year since you last changed the coolant in your vehicle, use new coolant. Dilute the coolant as specified in your owner’s manual or service guide and fill to the mark that says “cool” or “cold” on the tank. If your coolant is clean and relatively new, you can pour the old coolant back into your radiator.
Rerun the drive belt(s). You should use the routing diagram stamped on your hood or printed in your owner’s manual to make sure that the belt is run properly. Pulleys with grooves are intended to meet the grooved side of the belt, but some flat pulleys are meant to be driven by the flat backside of the belt.
Tighten the belt. This can be done by releasing the tensioner in a serpentine design. If you are working with a V-belt design then you will need to tension the belt manually. A good rule of thumb is that the belt should have a maximum of ⁄2 inch (1.3 cm) of movement in the middle of the belt's longest run. Check your vehicle manual for more information. If in doubt, consult a mechanic.
Check one last time to make sure all belts and hoses are connected. You do not want to start your engine without all of the appropriate accessories hooked up. Take a second look over everything and make sure that all is well before moving on.
Wrapping Up the Job
Reconnect your battery. Connect the positive cable first, and then connect the ground cable.
Start the car's engine. Turn the key and start the engine.
Check for drips or leaks. Look under your hood and under your car to make sure that no fluid is dripping or leaking. If you are leaking coolant, check to make sure all hoses are connected properly to the radiator and water pump. If you are leaking oil you might have to replace the crankshaft seal again.
Check the timing with a timing light. This ensures that all cylinders are firing at the correct time and that the valves are opening and closing properly in relation to the piston’s position.
