Installing a Wireless Doorbell

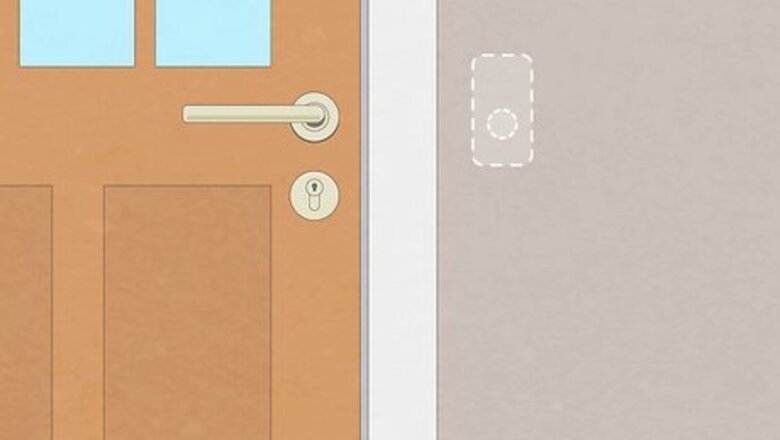

Find an easy-to-spot location for the doorbell switch. The doorbell switch is the button that is pushed to sound the doorbell. Choose a visible position next to the door for the switch. Visitors should be able to spot it easily when they are standing in front of your door. Placing the doorbell switch around eye-level on either side of your door frame is a good bet. It is best to opt for a weatherproof model of doorbell that will not be damaged by rain or snow.
Attach the switch with screws or adhesive. The switches for most models of doorbells come with holes at the back to make installation easy. Measure the switch and holes and use an electric drill to mount the switch on your door or wall. Alternatively, apply a strong binding glue to the back of the switch and apply it firmly to the desired surface. Wipe the surface you are attaching the switch to with a clean, damp cloth before the installation.
Choose a central spot to install the chime box. Ideally, the chime box should be mounted somewhere at the center of your home to ensure that everyone hears it. Pick a room that is relatively equal in distance from all the other rooms in your home. Choose a room that you do not usually close the doors to make sure that the sound will carry. For instance, you might install the chime box in your living room or dining room. Check the range on the chime box to make sure it still connects to the doorbell.
Put batteries in the chime box and mount it. Most wireless chime boxes will take D batteries. Open the unit and put the batteries in as indicated, them close the back panel securely. Choose a spot in your home where you want the sound to come from and attach the box the wall with screws. Most chime boxes will have mounting holes on the back.
Installing a Wired Doorbell
Cut off power from the breaker or fuse box to avoid injury. Make sure that the circuits that supply electricity to the power sources you are working with are shut off before starting the installation. Turn off the appropriate switches at your breaker panel or fuse box. Test light switches or other outlets in the area to make sure the power is off.
Connect doorbell wires to the chimes. Remove the cover on the chimes, and run the wires through the guide channel to the correct terminals. Wrap the ends of the wires around the appropriate terminals. Screw the holding screws into position. You can choose from a variety of door chimes with different dimensions and sound options. Many models of chimes will include small wiring diagrams printed inside to help with installation. The cover should pull off the chimes easily without the use of tools. For future reference, label the wires by writing where each one is meant to go (e.g. transformer, doorbell switch) on small pieces of masking tape attached to each one.
Secure the chimes into position. Make sure that you can run the wiring attached to your chimes to your transformer. Hold the new chimes on the spot that you want to attach them and use the screws provided to attach the device to the wall or ceiling. Once the chime plate is secured, fit the cover over the device and gently push until it snaps into place.
Attach the doorbell switch near your door. Choose a location for your doorbell switch near your entrance way. Drill a hole to run the wires coming out of the back of the switch into the wall, toward the chimes and transformer. Most models will have screws included to secure the plate into position. Install the screws with an electric drill, then slide the cover over the device until it snaps into position.
Attach the wires so that the transformer is connected to both the chime and the doorbell. Carefully wrap the ends of the wires around the transformer terminals. This small metal device will convert the AC power coming from the door switch to a lower voltage power to power the chimes.Transformers are often mounted directly onto an electrical box to keep high voltage wires enclosed.
Attach the switch and chimes with twist wire connectors. Use plastic twist wire connectors to easily link wires between the switch and chimes. Bring the ends of both wires together and place the cap onto the ends, twisting until the wires are firmly connected. This direct connection will create the signal between the doorbell button and the chimes, while the transformer will mediate this connection to bring it to a safe voltage.
Restore power and test the doorbell. Restore the power through your power breaker or fuse box. Push the doorbell switch to test the system. If the chimes function properly, the task is complete. If the doorbell does not function, turn off the power again and test the wire connections.
